Pos	Ref. no.	Ref. no.	Order no.	Description	QTY
1	11.843.021.320AGi	S002Y	J-1001	Electrode, O2, silver insert	5
2	11.843.021.320	S002Y	J-1002	Electrode, O2, whole silver, Xl	5
3	11.835.221.153	Z101	J-1003	Swirl ring, 3 holes	1
3	11.835.221.154	Z102	J-1004	Swirl ring, 2 holes	1
4	11.843.021.406	S2006X	J-1005	Nozzle, 0.6mm, 25A	5
4	11.843.021.407	S2007X	J-1006	Nozzle, 0.7mm, 35A	5
4	11.843.021.408	S2008X	J-1007	Nozzle, 0.8mm, 50A	5
4	11.843.021.409	S2009X	J-1008	Nozzle, 0.9mm, 70A	5
4	11.843.021.410	S2010X	J-1009	Nozzle, 1.0mm, 80A	5
4	11.843.021.411	S2011X	J-1010	Nozzle, 1.1mm, 90A	5
4	11.843.021.412	S2012X	J-1011	Nozzle, 1.2mm, 100A	5
4	11.843.021.414	S2014X	J-1012	Nozzle, 1.4mm, 130A	5
4	11.843.021.416	S2016X	J-1013	Nozzle, 1.6mm, 160A	5
5	11.842.401.160	S3004	J-1014	Nozzle retaining cap, 0.4mm	1
5	11.842.401.162	S3008	J-1015	Nozzle retaining cap, 0.8mm	1
5	11.842.401.1622	S3028	J-1016	Nozzle retaining cap, 0.8mm	1
6	11.835.201.1561	Z4015	J-1017	Inner nozzle, 1.5mm	5
6	11.835.201.1571	Z4020	J-1018	Inner nozzle, 2.0mm	5
6	11.835.201.1551	Z4022	J-1019	Inner nozzle, 2.2mm	5
6	11.835.201.1581	Z4025	J-1020	Inner nozzle, 2.5mm	5
6	11.835.201.1591	Z4030	J-1021	Inner nozzle, 3.0mm	5
6	11.835.401.1571	Z4140	J-1022	Inner nozzle, 4.0mm	5
7	11.835.201.081	Z501	J-1023	Outer shield	1
8	11.843.121.310AGi	S012	J-1024	Electrode, O2, silver insert	5
9	11.843.121.310	S012	J-1025	Electrode, O2, whole silver, Xl	5
10	11.835.421.303	Z111A	J-1026	Distance ring	1
11	11.834.321.153	Z111	J-1027	Swirl ring, VESPEL	1
12	11.843.121.412	S2112X	J-1028	Nozzle, 1.2mm, 100A	5
12	11.843.121.414	S2114X	J-1029	Nozzle, 1.4mm, 130A	5
12	11.843.121.416	S2116X	J-1030	Nozzle, 1.6mm, 160A	5
13	11.842.411.510	S042	J-1031	Electrode, ArH2	5
14	11.842.511.510 OEM	S052	J-1032	Electrode, ArH2	5
15	11.843.111.614	S2514X	J-1033	Nozzle, 1.4mm, 100A	5
15	11.843.111.616	S2516X	J-1034	Nozzle, 1.6mm, 130A	5
15	11.843.111.618	S2518X	J-1035	Nozzle, 1.8mm, 160A	5
16	11.835.411.1581	Z4530	J-1036	Inner shield, 3.0mm	5
16	11.835.411.1580	Z4535	J-1037	Inner shield, 3.5mm	5
16	11.835.411.1591	Z4540	J-1038	Inner nozzle, 4.0mm	5
16	11.835.411.1590	Z4545	J-1039	Inner nozzle, 4.5mm	5

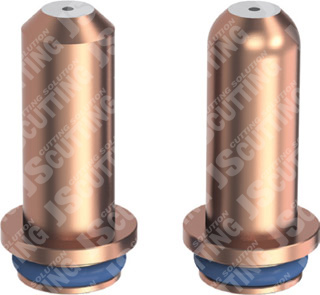

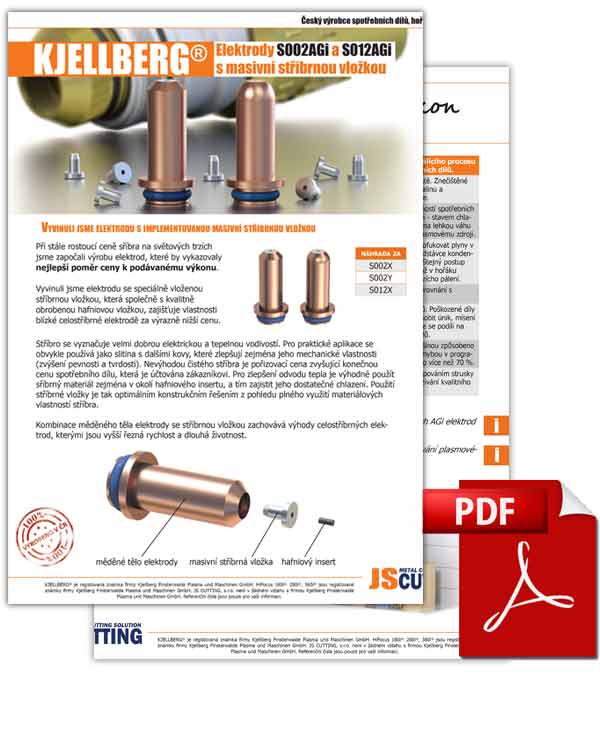

We have developed electrode with massive silver insert.

With the continuously increasing price of silver on world markets we began the manufacture of electrodes that showed the best price to a given output ratio in the market. We have developed an electrode with specially inserted silver insert, which together with high quality machined hafnium insert, provides output close to silver electrode at a significantly lower price.

Lower the operating costs of your plazma cutting machine with help of our AGi electroode with massive silver insert.

Our products are fully compatible and interchangeable with original consumables. You can simply change consumable and continue with cutting.

Advantages

Silver has very good electrical and thermal conductivity. For practical applications, it is usually used as an alloy with other metals to improve the mechanical properties in particular. Disadvantage of pure silver is purchase price what increase price of final product, which is billed to customer. For the best heat removal is much better to use silver material only along the hafnium insert what leads to ensure sufficient hafnium cooling(improved electrode lifetime). In the view of full utilization of silver material attributes is usage of silver insert optimal construction solution for improved electrodes.

Combination of copper electrode body with silver insert remain advantages of the whole silver electrodes which are higher cut speed and long lifetime.

Copper electrode body Massive silver insert Hafnium insert

Graph - 20mm Mild steel - internal tests

Compare AGi to original electodes. Price to lifetime.

	Electrode lifetime.
	Electrode price.

Electrodes wear

Best power / price ratio

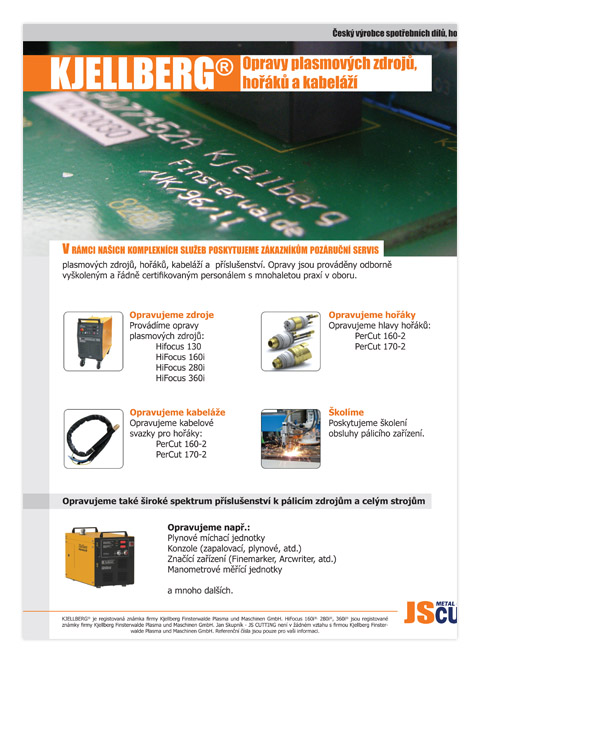

Repair and revision services for Hifocus130® and HiFocus160i® plazma systems

Within our complex solution we provide to our customers post-warranty service of plazma cutting sources, torches, lead sets and accessories. Repairs are provided by our professionally trained and properly certificated employees with many years of experiences.

Pos	Ref. no.	Order no.	Description	QTY

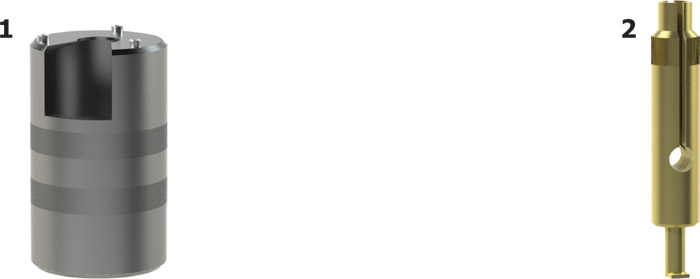

1	11.843.001.810 OEM	J-1040	Mounting tool for nozzles and inner shields	1
2	11.835.221.820	J-1041	Tool for demounting electrodes and swirl rings	1

Pos	Ref. no.	Order no.	Description	QTY
1	SILPA-1	J-1042	Silicone lubricant for O-rings protection, 25ml	1
2	KERS-1	J-1043	Ceramic spray for better protection of thermal stress consumables	1

Pos	Ref. no.	Order no.	Description	QTY
1	DIGI-1	J-1044	Digital meter for electrode burn measuring	1



Pos	Ref. no.	Order no.	Description	QTY
6	11.843.021.830 OEM	J-1065	Base for quick torch change and clean, PerCut 1720-2, OEM	1



Pos	Ref. no.	Order no.	Description	QTY

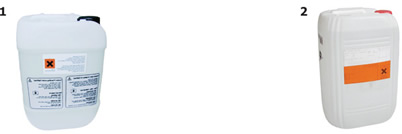

1	12.62320 OEM	J-1045	Cooling liquid, Kjellfrost, -15°/10l, OEM	1
1	12.62330 OEM	J-1046	Cooling liquid, Kjellfrost, -15°/20l, OEM	1
1	12.62340 OEM	J-1047	Cooling liquid, Kjellfrost, -25°/10l, OEM	1
1	12.62350 OEM	J-1048	Cooling liquid, Kjellfrost, -25°/20l, OEM	1
