Pos | Ref. no. | Order no. | Description | QTY |
1 | 120925 | J-1210 | Swirl ring, 40A/60A/80A | 1 |

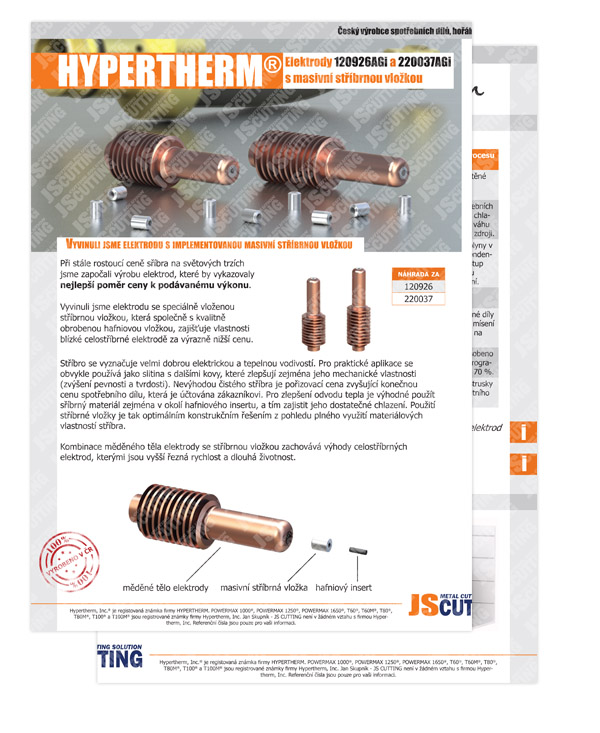

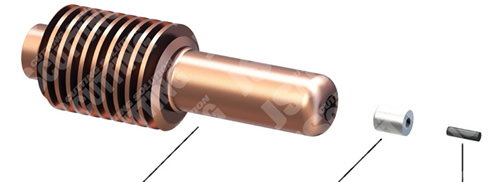

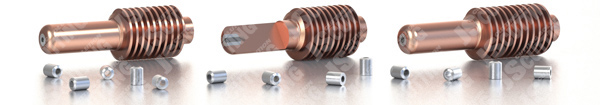

2 | 120926AGi | J-1211 | Electrode, 40A/60A/80A, silver insert | 5 |
3 | 120932 | J-1212 | Nozzle, 40A | 5 |
4 | 120931 | J-1213 | Nozzle, 60A | 5 |
5 | 120927 | J-1214 | Nozzle, 80A | 5 |
6 | 220006 | J-1215 | Nozzle, 40A, extended | 5 |
7 | 220007 | J-1216 | Nozzle, 60A, extended | 5 |
8 | 120980 | J-1217 | Nozzle, 80A, extended | 5 |
9 | 220329 | J-1218 | Nozzle, 40A, Finecut® | 5 |
10 | 120928 | J-1219 | Nozzle retaining cap, 40A/60A/80A | 1 |
11 | 120930 | J-1220 | Outer shield, 40A/60A/80A/100A, machine cutting | 1 |
12 | 120929 | J-1221 | Outer shield, 40A/60A/80A, hand cutting | 1 |
13 | 120979 | J-1222 | Outer shield, 40A/60A/80A, unshielded | 1 |
14 | 220325 | J-1223 | Outer shield, 40A, Finecut® | 1 |
Pos | Ref. no. | Order no. | Description | QTY |
1 | 220051 | J-1224 | Swirl ring, 100A | 1 |
2 | 220037AGi | J-1225 | Electrode, 100A, silver insert | 5 |
3 | 220011 | J-1226 | Nozzle, 100A | 5 |
4 | 220064 | J-1227 | Nozzle, 100A, extended | 5 |
5 | 220048 | J-1228 | Nozzle retaining cap, 100A | 1 |
6 | 220047 | J-1229 | Outer shield, 100A, machine cutting | 1 |
7 | 220065 | J-1230 | Outer shield, 100A, hand cutting | 1 |
8 | 120979 | J-1222 | Outer shield, 40A/60A/80A, unshielded | 1 |
Full compatibility Our production is fully compatible with OEM consumables, torches and lead sets. You can simply change the OEM part to our and continue with cutting process. |
Legend OEM original part. NS not shown. |
Warning Setup of cutting values like for example gas pressure, cutting speed, cutting height etc. Must be always consulted with plazma source original manual ! |
Warning All components what come into contact with air must be clean out of any impurity like oil, vaseline and other ! |
Hypertherm® is registered trademark of HYPERTHERM, Inc. company. POWERMAX 1000®, POWERMAX 1250®, POWERMAX 1650®, T60®, T60M®, T80®, T80M®, T100® a T100M® are registered trademarks of Hypertherm, Inc. company JS CUTTING, s.r.o. is in no way affiliated with Hypertherm, Inc. company. Reference numbers are for your convinience only. |
