Home : Products : Consumables for plazma cutting : Hypertherm® : HT2000®/MAX200®
Products Consumables for plazma cutting Hypertherm® Kjellberg® Esab® Thermal Dynamic® OTC®/DAIHEN® Consumables for laser cutting Consumables for oxy-fuel cutting Consumables for welding
This torch use our technology
AGi electrodes
Electrodes with massive silver insert

MADE IN CZECH REPUBLIC
All consumables made by
JS CUTTING, s.r.o. are produced in the Czech Republic only !

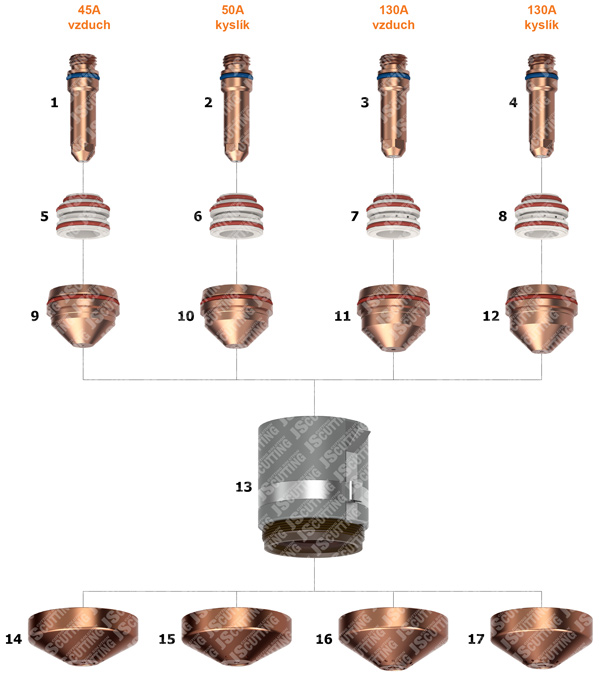

Pos Ref. no. Order no. Description QTY
1 220528AGi J-1416 Nozzle, 45A-50A, Air, Silver insert 5
2 220528AGi J-1416 Electrode, 45A, N2 and F5, Silver insert 5
3 220487AGi J-1369 Electrode, 130A - Air/O2 silver insert 5
5 220487AGi J-1369 Electrode, 130A - Air/O2 silver insert 5
7 220529 J-1456 Swirl ring, 45A - Air,N2,F5/50A - 02 1
8 220529 J-1456 Swirl ring, 45A - Air,N2,F5/50A - 02 1
9 220488 J-1457 Swirl ring, 130A - Air/O2 1
10 220488 J-1457 Swirl ring, 130A - Air/O2 1
11 220525 J-1415 Nozzle, 45A, Air/O2 5
12 220530 J-1377 Nozzle, 50A, O2 5
13 220492 J-1414 Nozzle, 130A,,Air 5
14 220489 J-1370 Nozzle, 130A, O2 5
15 220578 J-1458 Nozzle retaining cap 1
16 220532 J-1459 Outer shield, 45A - Air,N2,F5/50A - O2 1
17 220532 J-1459 Outer shield, 45A - Air,N2,F5/50A - O2 1
18 220536 J-1460 Outer shield, 130A, Air,N2,H35 1
19 220491 J-1461 Outer shield, 130A, O2 1

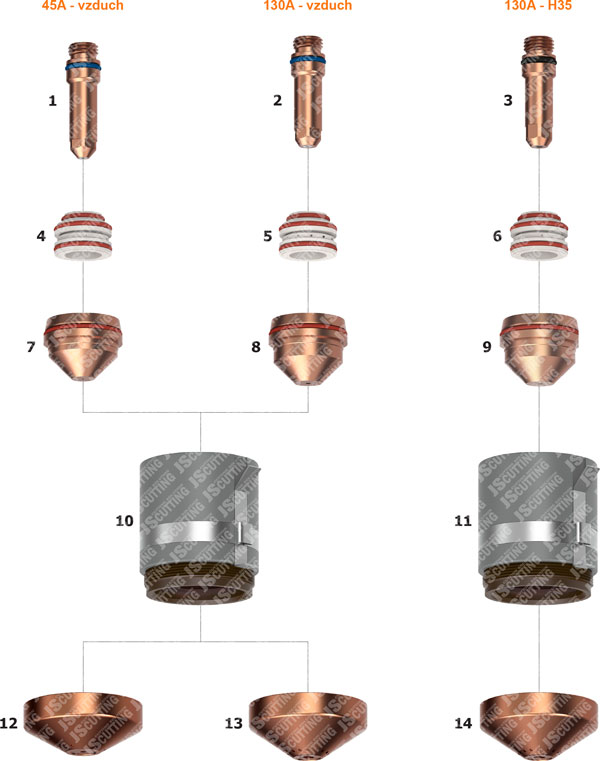

Pos Ref. no. Order no. Description QTY
1 220528AGi J-1416 Nozzle, 45A-50A, Air, Silver insert 5
2 220528AGi J-1416 Nozzle, 45A-50A, Air, Silver insert 5
3 220487AGi J-1369 Electrode, 130A - Air/O2 silver insert 5
5 020415 J-1462 Electrode 5
6 020415 J-1462 Electrode 5
7 220529 J-1456 Swirl ring, 45A - Air,N2,F5/50A - 02 1
8 220529 J-1456 Swirl ring, 45A - Air,N2,F5/50A - 02 1
9 220488 J-1457 Swirl ring, 130A - Air/O2 1
10 220488 J-1457 Swirl ring, 130A - Air/O2 1
11 220529 J-1456 Swirl ring, 130A - H35 1
12 220525 J-1415 Nozzle, 45A, Air/O2 5
13 220525 J-1415 Nozzle, 45A, Air/O2 5
14 220492 J-1414 Nozzle, 130A,,Air 5
15 220535 J-1463 Nozzle, 130A - N2/H35 5
16 220535 J-1463 Nozzle, 130A - N2/H35 5
17 220578 J-1458 Nozzle retaining cap 1
18 220534 J-1464 Nozzle retaining cap 1
19 220578 J-1458 Nozzle retaining cap 1
20 220534 J-1464 Nozzle retaining cap 1
21 220532 J-1459 Outer shield, 45A - Air,N2,F5/50A - O2 1
22 220536 J-1460 Outer shield, 130A, Air,N2,H35 1

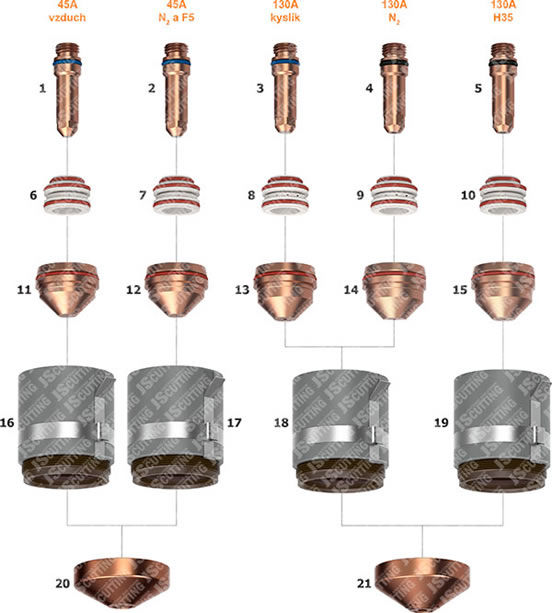

Pos Ref. no. Order no. Description QTY
1 220528AGi J-1416 Nozzle, 45A-50A, Air, Silver insert 5
2 220487AGi J-1369 Electrode, 130A - Air/O2 silver insert 5
4 020415 J-1462 Electrode 5
5 220529 J-1456 Swirl ring, 45A - Air,N2,F5/50A - 02 1
6 220488 J-1457 Swirl ring, 130A - Air/O2 1
7 220529 J-1456 Swirl ring, 130A - H35 1
8 220525 J-1415 Nozzle, 45A, Air/O2 5
9 220492 J-1414 Nozzle, 130A,,Air 5
10 220535 J-1463 Nozzle, 130A - N2/H35 5
11 220578 J-1458 Nozzle retaining cap 1
12 220534 J-1464 Nozzle retaining cap 1
13 220532 J-1459 Outer shield, 45A - Air,N2,F5/50A - O2 1
14 220536 J-1460 Outer shield, 130A, Air,N2,H35 1
15 220536 J-1460 Outer shield, 130A, Air,N2,H35 1
Full compatibility
Our production is fully compatible with OEM consumables, torches and lead sets.
You can simply change the OEM part to our and continue with cutting process.
Legend
OEM original part.
NS not shown.
Warning
Setup of cutting values like for example gas pressure, cutting speed, cutting height etc. Must be always consulted with plazma source original manual !
Warning
All components what come into contact with air must be clean out of any impurity like oil, vaseline and other !

HYPERTHERM® is registered trademark of HYPERTHERM, Inc. company. HSD130tm is registered trademark of HYPERTHERM, Inc. company. JS CUTTING, s.r.o. is in no way affiliated with HYPERTHERM, Inc. company. Reference numbers are for your convinience only.

Pos Ref. no. Order no. Description QTY
1 220474 J-1466 Torch body 1
NS 220473 OEM J-1467 Mounting sleeve, OEM 1
NS 228050 OEM J-1468 Complete lead set, 7.5m, OEM 1
NS 228051 OEM J-1469 Complete lead set, 15m, OEM 1
Full compatibility
Our production is fully compatible with OEM consumables, torches and lead sets.
You can simply change the OEM part to our and continue with cutting process.
Legend
OEM original part.
NS not shown.
Warning
Setup of cutting values like for example gas pressure, cutting speed, cutting height etc. Must be always consulted with plazma source original manual !
Warning
All components what come into contact with air must be clean out of any impurity like oil, vaseline and other !

HYPERTHERM® is registered trademark of HYPERTHERM, Inc. company. HSD130tm is registered trademark of HYPERTHERM, Inc. company. JS CUTTING, s.r.o. is in no way affiliated with HYPERTHERM, Inc. company. Reference numbers are for your convinience only.

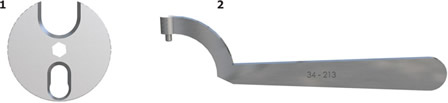

Pos Ref. no. Order no. Description
1 027102 OEM J-1470 Tool for electrode removing, OEM
Pos Ref. no. Order no. Description
3 SILPA-1 J-1042
4 KERS-1 J-1043
Pos Ref. no. Order no. Description
5 DIGI-1 J-1044 Digital meter for electrode burn measuring

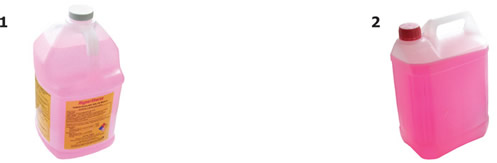

Pos Ref. no. Order no. Description
6 028872 OEM J-1143 Cooling liquid, 1 gallon, 3.8l, 0°C - 40°C, OEM
