air cutting

oxy cutting

ArH2 cutting

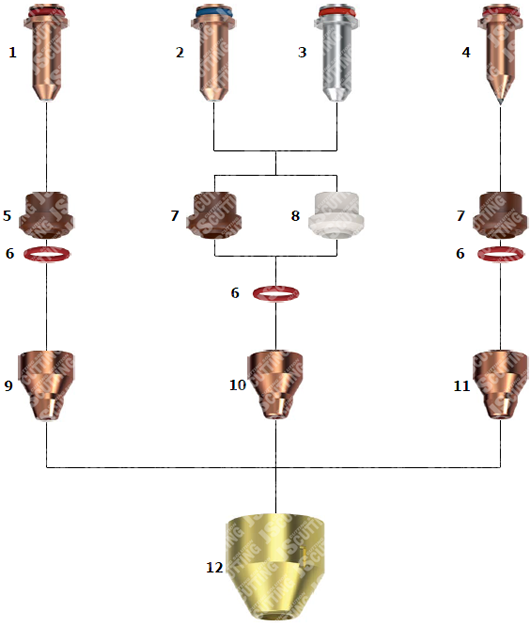

Pos	Ref. no.	Ref. no.	Order no.	Description	QTY
1	11.828.001.3001AGi	Kb	J-1192	Electrode, kb, air, silver insert	5
2	11.834.321.3001AGi	Kb-XL	J-1193	Electrode, bk-XL, O2, silver insert	5
3	11.834.321.3101	Kb-XL	J-1194	Electrode, kb-XL, O2, whole silver	5
4	11.828.211.5001	Ka	J-1195	Electrode, Ka, ArH2	5
5	11.828.001.153	Z111	J-1196	Swirl ring	1
6	10.575.036		J-1197	O-ring	1
7	11.834.321.153/V	Z111	J-1198	Swirl ring, VESPEL	1
8	11.834.321.153 OEM	Z111	J-1199	Swirl ring, ceramic, OEM	1
9	11.828.203.410	Lle	J-1200	Nozzle, Lle, 1.0mm, 45A, Air	5
9	11.828.203.413	Lde	J-1201	Nozzle, Lde, 1.3mm, 90A, air	5
9	11.828.203.414	Lee	J-1202	Nozzle, Lee, 1.4mm, 130A, air	5
10	11.834.321.410	Lle-XL	J-1203	Nozzle, Lle-XL, 1.0mm, 45A, O2	5
10	11.834.321.413	Lde-XL	J-1204	Nozzle, Lde-XL, 1.3mm, 90A, O2	5
10	11.834.321.414	Lee-XL	J-1205	Nozzle, Lee-XL, 1.4mm, 130A, O2	5
11	11.828.203.613	Ade	J-1206	Nozzle, Ade, 1.3mm, 80A, ArH2	5
11	11.828.203.614	Aee	J-1207	Nozzle, Aee, 1.4mm, 90A, ArH2	5
11	11.828.203.616	Afe	J-1208	Nozzle, Afe, 1.6mm, 130A, ArH2	5
12	11.830.301.151		J-1209	Outer shield, 9.6mm	1

Repair and revision services for
PA-S45 W®, FineFocus 450®, PA-S47 CNC®, PA-S70 W®,
PB-S45 W®, PB-S45 W-1®,PB-S45 WH-1®, PB-S45 W-1/O2®
plazma systems and torches

Within our complex solution we provide to our customers post-warranty service of plazma cutting sources, torches, lead sets and accessories. Repairs are provided by our professionally trained and properly certificated employees with many years of experiences.

We repair PB-S45 W®, PB-S45 W-1®,PB-S45 WH-1®, PB-S45 W-1/O2® plazma torch heads

We have developed electrode with massive silver insert.

With the continuously increasing price of silver on world markets we began the manufacture of electrodes that showed the best price to a given output ratio in the market. We have developed an electrode with specially inserted silver insert, which together with high quality machined hafnium insert, provides output close to silver electrode at a significantly lower price.

Lower the operating costs of your plazma cutting machine with help of our AGi electroode with massive silver insert.

Our products are fully compatible and interchangeable with original consumables. You can simply change consumable and continue with cutting.

Advantages

Silver has very good electrical and thermal conductivity. For practical applications, it is usually used as an alloy with other metals to improve the mechanical properties in particular. Disadvantage of pure silver is purchase price what increase price of final product, which is billed to customer. For the best heat removal is much better to use silver material only along the hafnium insert what leads to ensure sufficient hafnium cooling(improved electrode lifetime). In the view of full utilization of silver material attributes is usage of silver insert optimal construction solution for improved electrodes.

Combination of copper electrode body with silver insert remain advantages of the whole silver electrodes which are higher cut speed and long lifetime.

Copper electrode body Massive silver insert Hafnium insert

Graph - 15mm Mild steel - internal tests

Compare AGi to original electrodes. Price to lifetime.

	Electrode lifetime.
	Electrode price.

Electrodes wear

Best power / price ratio

Pos	Ref. no.	Order no.	Description	QTY
1	J-1355	J-1355	Spanner for electrodes and nozzles	1
2	J-1356	J-1356	Spanner for outer nozzle	1

Pos	Ref. no.	Order no.	Description	QTY
1	SILPA-1	J-1042	Silicone lubricant for O-rings protection, 25ml	1
2	KERS-1	J-1043	Ceramic spray for better protection of thermal stress consumables	1

Pos	Ref. no.	Order no.	Description	QTY
1	DIGI-1	J-1044	Digital meter for electrode burn measuring	1



Pos	Ref. no.	Order no.	Description	QTY
1	12.62320 OEM	J-1045	Cooling liquid, Kjellfrost, -15°/10l, OEM	1
1	12.62330 OEM	J-1046	Cooling liquid, Kjellfrost, -15°/20l, OEM	1
1	12.62340 OEM	J-1047	Cooling liquid, Kjellfrost, -25°/10l, OEM	1
1	12.62350 OEM	J-1048	Cooling liquid, Kjellfrost, -25°/20l, OEM	1
1	J-1049	J-1049	Cooling liquid, replacement for Kjellfrost, -25°/20l	1
